VIBE Audio presents our products in the Blackair Range with out New Ultra Slim subwoofers
These latest subwoofer have been engineered with space saving and performance at the forefront of development.
Often space is the limiting factory in modern vehicles and can make adding bass which we know ist he life and soul of the music very difficult. Our Blackair slimline subwoofers have been designed to give you amazing bass reproduction even from the tightest of spaces

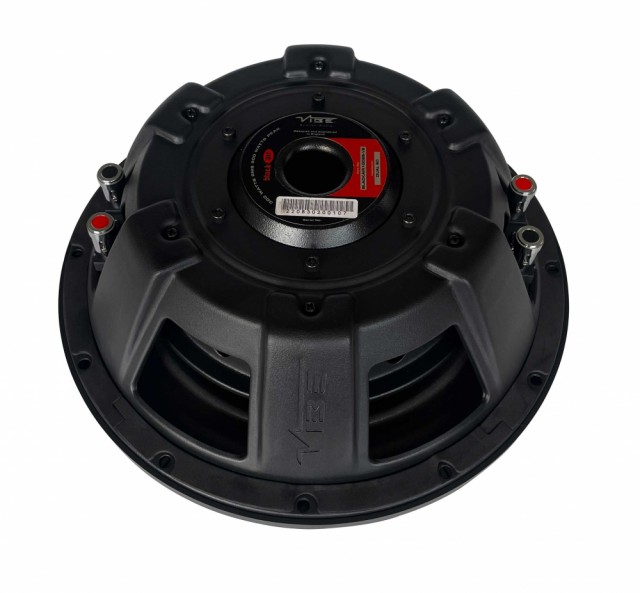

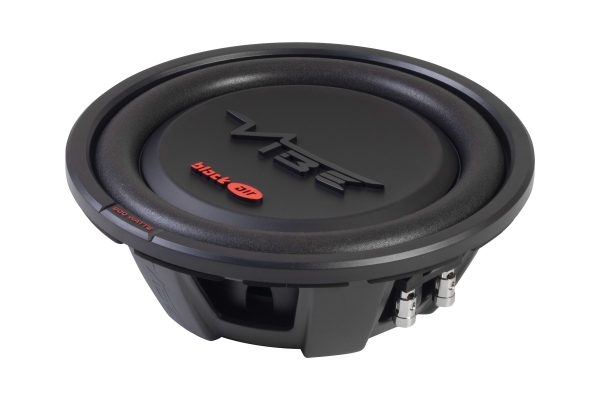

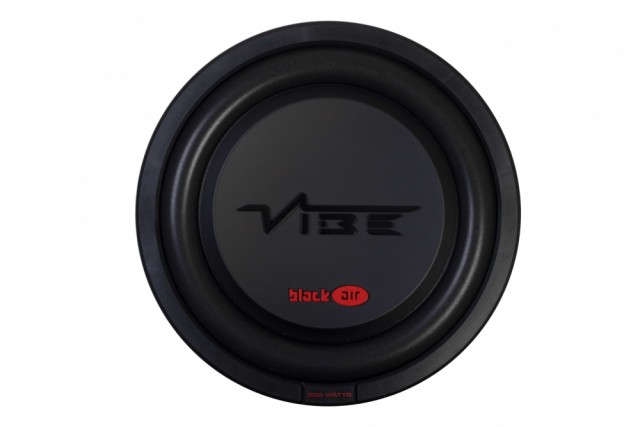

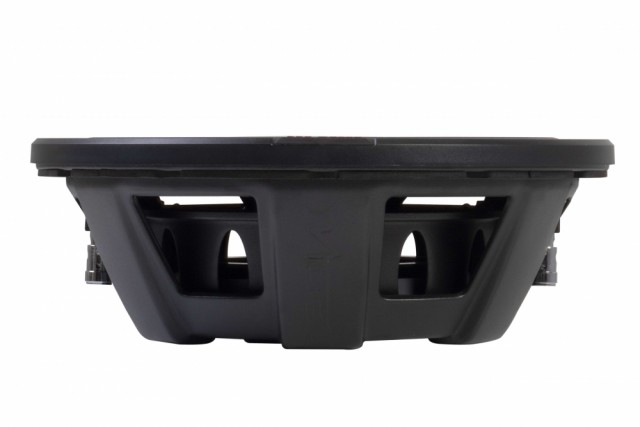

Avaliable in 10 and 12 inch models, our slimline subwoofers are ultra slim measuring under 3.1:in depth making them easy to fit in custom enclosure where space is limited, this paired with high quality magnets, a unique basket design which encloses the magnet inside with a specially designed spider platform to enhance performance despite its lack of depth.
A high quality but lightweight 2.5” voice coil is used capable of 300 watts RMS on the dual 2ohm set up. Woven tinsel leads, PC spiders, light weight foam surround and a robust PP dust-cap make up the soft-parts, this engineered combination makes for a highly efficient subwoofer with great accuracy when it comes to bass reproduction.
The slimline nature allows both 10 and 12 inch woofers to be installed into enclosures under 1 cubic foot of volume!Slim, Elegant and designed for performance – The New Blackair Slimline subwoofers
Model – BLACKAIR10D2S-V2
Speaker Size – 10” (261mm)
Peak/RMS Power – 900W/300W
Sensitivity – 85dB
Frequency Response – 30Hz – 1kHz
Impedance – Dual 2Ω
Voice Coil – 3” 4 layer
Mounting Depth – 3” (76mm)
Mounting Diameter – 9” (230mm)
Enclosure Volume – 1 – 5ft3
Recommended Amp – POWERBOX400.1M
Parameter BLACKAIR10D2S-V2 (Series). BLACKAIR10D2S-V2 (Parallel)
Fs 36.14Hz 35.986Hz
Vas 14.433 14.291
Re 3.6Ω 0.9Ω
Qms 5.10 3.785
Qes 1.051 0.935
Qts 0.869 0.750
BL 13.342Tm 7.122Tm
SPL 80dB 80.4dB
Sd 0,034m/2 0,034m/2
Cms 84.726uM/N 83.893uM/N
Mms 228.9g 233.161g
Mmd 225.194g 229.454g
X-Max 8mm 8mm
X-Mech 20mm 20mm
Manuals
Click download below to view PDF versions of the manuals for this product
