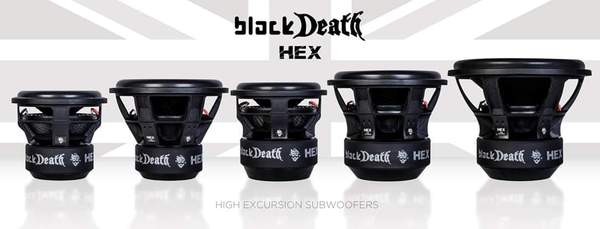

Introducing the brand new high excursion blackdeath HEX subwoofers from VIBE Audio UK.
Hex stands for high excursion and these latest subwoofers from VIBE certainly know how to move.
The hex subwoofers come in 2500w d1 3" voice coils in 12" and 15" diameter. And for the customer wanting somthing abit more powerful there is a 5000w d1 4" voice coil subs, available in 12,15 and 18" diameter!!
The high excursion comes from a perfect combination of soft moving parts and MONSTROUS MOTORS!!. the 3" and 4" voice coils come in a staggering 75mm winding height. The huge winding height allows the woofer to remain in total control electrically while moving on its 2 way linier movement of 70mm peak to peak. The huge excursion and Xmax of this woofer allows the hex drivers to move huge amounts or air delivering incredible ground shaking bass and huge amounts or air pressure. The 10" NOMEX spiders allows definitive control of the woofer.
The beautiful designed baskets with custom touches looks menacing and the ultra wide surround will intimidate those that come into contact with these incredible woofers!!!
Due to weight, this product will ship by pallet
Non Pressed Paper Cone
Wide Roll Dual Foam Surround
10" 6pcs Black NOMEX / PC Spiders
8 awg direct cable connection
High Quality Y35 Triple stacked Ferrite Magnets
USA Built 8 Layer Flat Wound Voice Coil
Dual 1 Ohm Impedance
Model: BLACKDEATHCHEX18-V7
Cone: Non-pressed paper cone
Surround: Big roll foam - stitched
Dustcap: Black PP
Voice Coil: 4" diameter
Spider: 1pcs black NOMEX + 5pcs PC
Gasket: Rubber
Top Plate: 30mm Black anodized
T-Yoke: 50mm Flat
Terminal / Wire: 8 awg Cable
Impedance: Dual 1 Ohms
RMS Power: 5000 watts
Magnet: 280mm x 120mm x 25mm 3pcs

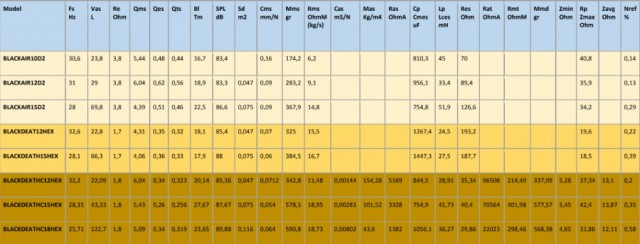

TS Parameters
SD : 0.116m/2
CMS : 0.64mm/N
MMS : 590.8g
RMS : 18.73ΩM
RES : 29.86
RP Zmax : 31.86
Nref : 0.58%
Fs : 25.71Hz
Vas : 122.7L
Re : 1.8Ω
QMS : 5.09
QES : 0.34
QTS : 0.319
BL : 23.65Tm
SPL : 89.88dB
