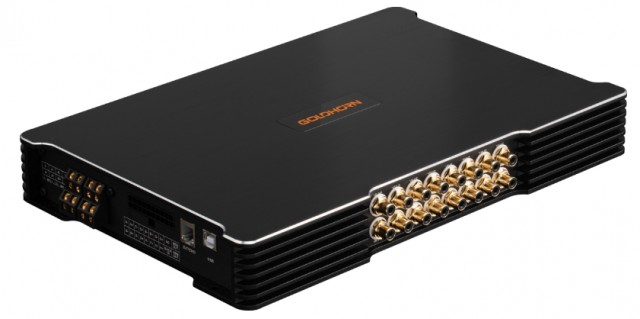

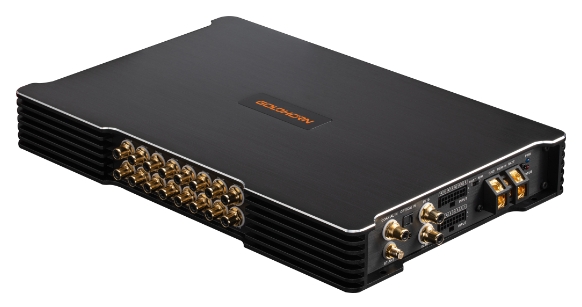

Goldhorn DSPA1216 Pluss

16 channel Dsp, 12 ch Amplifier

NOK13 990,00 inkl. mva.
På lager: 2 stk.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

The DSPA 1216 Plus stands out with its robust built-in amplifier, delivering up to 80W per channel across eight channels and 150W per channel across four channels. In bridging mode, it reaches 200W per channel for two channels, ensuring your subwoofers and woofers, along with high-end speakers, produce rich and immersive 360° surround sound. The unit also features 16-channel RCA outputs, supporting a range of future upgrades, making it a future-proof addition to any vehicle.

Designed to integrate seamlessly with luxury vehicles like Mercedes-Benz, BMW, Audi, and more, the DSPA 1216 Plus ensures the original car speakers reach their full potential. It includes high-end components such as a Class D amplifier and Bluetooth® 5.0 with support for advanced audio codecs. The processor allows for precise audio customization with a 31-band EQ, crossover frequency, slope adjustments, and time alignment delays, catering to individual preferences for a superior listening experience. Additionally, its Error Protection System and navigation mix feature guarantee uninterrupted, high-quality audio output, further enhancing the user experience.

 DSPA 1216 Plus Technical Specs
DSP Chip ADAU1452
DAC Chip PCM1690
ADC Chip 2 x PCM1840
Opamp NJM4580 & MC33078
Capacitors High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps
PC Connection USB B
Processing Functions Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps / Master Gain: 0 ~ 60dB / Channel gains: -20dB ~ +5dB Polarity: Phase Reversal 0 or 180 / EQ filters Q 0.5 ~ 15 @ 0.1 steps / Input Mixer Three Linking Functions: Volume Linking- Absolute or Relative EQ Linking – Relative or Absolute Crossover Linking – With EQ link on, Freq Link button will link crossovers
Output EQ EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass
Crossover Butterworth & Bessel: 6,12,18,24,30,36,42,48dB / Linkwitz: 12, 24, 36dB
Delay 0 ~ 20ms / 0.02ms Steps
Inputs 8 x Hi / 2 x RCA / Opt / Coax / BT
XO Phase Rotation Variable Phase shift at HP and LP filters from 0° ~ 359°
Input EQ EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps
Frequency Resp: 20Hz ~ 40kHz
Operating Voltage 10V ~ 16V
Input Sens (V) RCA 3V Max
Input Sens (V) Hi 16V
RCA Out Voltage 8 x 6V
RCA Out Specs THD+Noise < 0.003 S/N ⧁108
Amp Outputs 80W X 80
Dimensions (mm) Class D
Start-Stop ready 218 x 170 x 43
EPS Error Protection System Yes
Finish Yes
Auto Turn On via DC Offset or Signal Sensing Black anodized Aluminum
Remote Turn on Output Yes
Built in Bluetooth Yes
THD+Noise Amplifier 0.03%
S/N ratio Amplifier >100dB
THD+Noise RCA out <0.002%
S/N ratio RCA out 108dB
Fuse Rating 40A
Input impedance: 6 Ohms
Controller Optional
Input Mixer Yes
Presets 8
Software Interface 64 bit Windows 8, Windows 8.1 or Windows 10, 11
Navigation Mode Yes
Power off Delay Yes Variable
Noise Gate (analog Input) Yes
Automatic Switching Config. Yes
Input EQ 5 Bands / Chan
Input All Pass Filters 1st and 2nd Order
Input Delay 0 ~ 10ms / Chan
Variable Phase 0~360 at crossover filters Yes
Output EQ 31 All Channels
Hi-Shelf, Low-Shelf Yes
Output All Pass filters 31 per channel
Output Delay 0 ~20ms @ .02 steps
