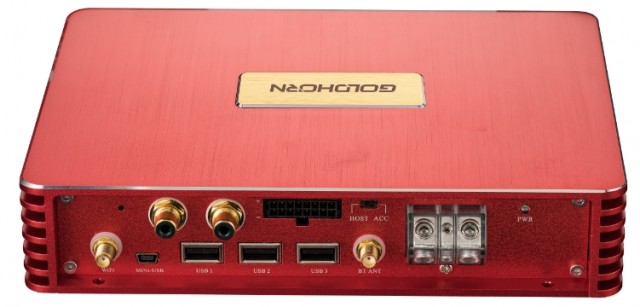

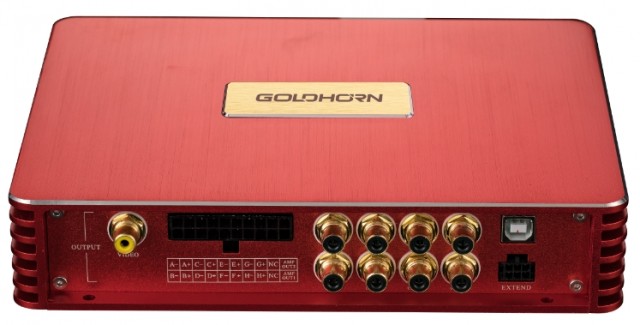

Goldhorn P2 DSPA Pro

8 channel dsp 8 ch amplifier and High res player

NOK14 990,00 inkl. mva.
På lager: 3 stk.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

The P2 DSPA Pro stands out in the audio equipment market for luxury vehicles, offering an unparalleled listening experience. It’s not just an ordinary DSP player; it integrates a comprehensive 31-band EQ DSP module, a robust digital amplifier, and a Bluetooth® 5.0 player, making it a versatile all-in-one solution for audiophiles seeking impeccable sound quality in their vehicles. The device supports a variety of high-resolution audio file formats including DFF, DSF, WAV, FLAC, APE, AIFF, and DSD, ensuring that every detail and nuance of the music is captured and reproduced with utmost fidelity.

The P2 DSPA Pro is built with top-tier components, including the TI PCM1690 for 24-bit / 192 kHz PCM, professional-grade Op Amps, and high-temperature tolerance electrolytic capacitors, guaranteeing reliable performance even under demanding conditions. Its integrated Professional DSP, powered by a 295 MHz ADI chip, allows for intricate audio adjustments across 31 bands, phase inversion, and time alignment delays, each adjustable per channel or in sync for selected channels. With its powerful 8 x 80W/4Ω Class D amplifier, 8 high-level inputs, and versatile output options, the P2 DSPA Pro enables advanced audio system configurations and seamless upgrades. The unit also features intelligent control options, including a panel with an IPS display, a digital remote, and app control, alongside lossless streaming capabilities via Bluetooth® 5.0 and WiFi. Its plug & play connection simplifies installation, eliminating the need for wire cutting and ensuring a hassle-free setup.

Key Features

  • High-resolution audio files playback: DFF/DSF/WAV/FLAC/APE/AIFF/DSD (up to 256)
  • Hi-End components: TI PCM1690 (24-bit / 192 KHz PCM) Professional Op Amp High temperature tolerance electrolytic capacitor (high-reliability under 105˚C)
  • Integrated Professional DSP: 295 MHz ADI chip with 1.2 billion MAC operations per second 31-band EQ, crossover frequency and slope, phase inversion, time alignment delays individually adjustable for each channel, or synchronously adjustable for chosen channels
  • Powerful 8 x 80W/4Ω Max. integrated Class D amplifier
  • 8 x High Level Inputs 2 x AUX Inputs
  • 8 x RCA Outputs 8 x High Level Outputs
  • Intelligent Control: panel control with IPS display, wireless digital remote control, APP control
  • Lossless streaming via Bluetooth® 5.0 (aptX) and WiFi connection
  • Easy Plug & Play connection
 P2 DSPA Pro Technical Specs
DSP Chip ADAU1452
DAC Chip PCM1690
ADC Chip 2 x PCM1840
Opamp NJM4580 & MC33078
Capacitors High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps
Music Formats Hi-Res: DFF / DSF / DSD Up to 256, Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF, Compressed: MP3 / AAC / OGG / WMA
Music Inputs USB 2.0 Host x 3, BT 5.0 aptX-LL/AptX-HD
Control Inputs BT Wireless Player Remote, Wi-Fi Mobile App, Optional Wired Panel controller w/IPS Display Screen
PC Connection USB B
Processing Functions (See delay below) Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps, Master Gain: 0 ~ 60dB, Channel gains: -20dB ~ +5dB Polarity: Phase Reversal 0 or 180, EQ filters Q 0.5 ~ 15 @ 0.1 steps, Input Mixer, Three Linking Functions: Volume Linking- Absolute or Relative, EQ Linking – Relative or Absolute, Crossover Linking – With EQ link on, Freq Link button will link crossovers
Delay 0 ~ 20ms / 0.02ms stops
Output EQ EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps, Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass
Crossover Butterworth & Bessel: 6, 12, 18, 24, 30, 36, 42, 48dB / Linkwitz: 12, 24, 36dB
XO Phase Rotation Variable Phase shift at HP and LP filters from 0° ~ 359°
Inputs 8 x Hi / 2 x RCA / BT
Input EQ EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps
Frequency Resp: 20Hz ~ 40kHz
Operating Voltage 11V ~ 16V
Input Sens (V) RCA 4V
Input Sens (V) Hi 24V
RCA Out Voltage 8 x 6V
RCA Out Specs THD+ Noise < 0.003 S/N Analog input ⧁ 108dB S/N Digital Input ⧁ 111dB
Amp Outputs | THD+Noise 100dB 8 x 80w, THD+Noise < 0.02 S/N ⧁100dB
Dimensions (mm) 217 x 170 x 43
Start-Stop ready Yes
EPS (Intelligent High-Level Input-Error Protection System) Yes
Finish Red Anodized Aluminum
Auto Turn On via DC Offset or Signal Sensing Yes
Remote Turn on Output Yes
Clipping LED’s No
Built in Bluetooth aptX
Built In Wifi Yes
THD+Noise RCA 0.003%
S/N ratio RCA 108dB Analog / 111dB Digital
THD+Noise Amplifier 0.02%
S/N ratio Amplifier >100dB
Fuse Rating 40A
Input impedance: No Impedance adaptor needed 6 Ohm High Level
Controller BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control
Input Mixer Yes
Presets 8
Software Interface PC 32bit W7 and up
All Pass filters at input and output EQs Both 1st Order and 2nd Order
Navigation Mode w/ Input Priority Yes
Automatic Mode Switching Mixer Yes
Password Available Yes
Analog Noise Gate Yes
Variable Power Off Delay Yes
Seven DAC rolloff choices for ESS 9038 No
