DSP16 Ultra

16 chanell DSP w BT

NOK54 990,00 inkl. mva.
På lager: 2 stk.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

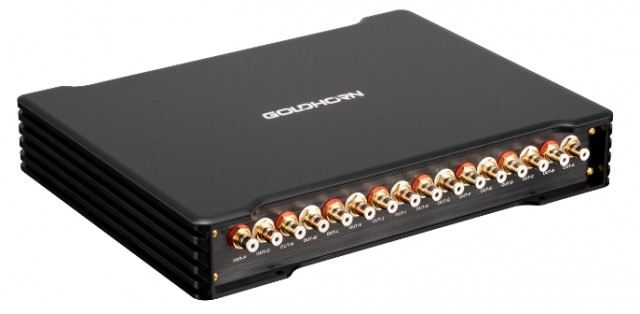

DSP16 Ultra is Goldhorn’s flagship stand-alone DSP, dedicated to delivering the essence of pure music aesthetics. The DSP16 Ultra is a definitive audio processor with dual DAC chips and a sophisticated triple-core DSP for a superior in-car sound experience. Equipped with Bluetooth 5.0, a 5-band input equalizer, and a 30-band output equalizer, it ensures precise sound control, catering to the most discerning listeners.

The DSP16 Ultra represents Goldhorn’s commitment to auditory excellence in automotive environments. It is engineered with high-end components such as Analog Devices DSP chip, AKM and ESS DACs, delivering high-fidelity audio at 768kHz/32bit. The device boasts a vast array of inputs, including 16 high-level, 2 AUX, and a selection of digital inputs to accommodate a variety of audio sources. Its Bluetooth 5.0 capability ensures seamless wireless connectivity, while the advanced codec support guarantees high-quality streaming.

For tailored sound adjustment, the DSP16 Ultra features an intricate equalizing system with a 5-band parametric input and a comprehensive 30-band parametric output, allowing for detailed sound shaping. Timing is key in audio reproduction, and with an adjustable input delay and time alignment delay, the DSP16 Ultra promises precise synchronization of sound. The output crossover and equalizer adjustments ensure compatibility with virtually any speaker setup. Its robust design is complemented by a sleek black finish, fitting seamlessly into the aesthetic of modern vehicles. With support for the latest PC systems, the DSP16 Ultra stands as an indispensable upgrade for the discerning car audio enthusiast.

 DSP16 Ultra Technical Specs
DSP Chip ADAU1463 x 3PCS
DAC Chip 2 x ESS9083Pro w/ 7 DAC Filter Settings
ADC Chip 2 x AK5558VN
Opamp Proprietary
Capacitors High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps
Music Formats N/A
Music Inputs 1 x USB-DAC (to 192/32bit) Opt. and Coax (to 192/24bit) BT 5.0 aptX HD/AAC/SBC
Control Inputs Standard Controller
PC Connection USB B
Processing Functions (See delay below) Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps, Master Gain: 0 ~ 60dB, Channel gains: -20dB ~ +5dB Polarity: Phase Reversal 0 or 180, EQ filters Q 0.5 ~ 15 @ 0.1 steps, Input Mixer, Three Linking Functions: Volume Linking- Absolute or Relative, EQ Linking – Relative or Absolute, Crossover Linking – With EQ link on, Freq Link button will link crossovers
Delay 0 ~ 20ms / 0.005ms Steps
Output EQ EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps, Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass
Crossover Butterworth & Bessel: 6, 12, 18, 24, 30, 36, 42, 48dB / Linkwitz: 12, 24, 36dB
XO Phase Rotation Variable Phase shift at HP and LP filters from 0° ~ 359°

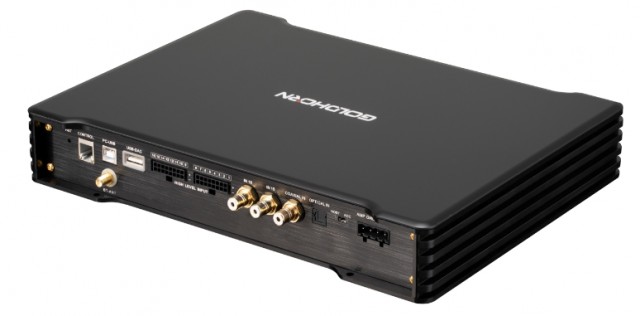

Inputs 16 x Hi / 2 x RCA/Opt./Coax/USB-DAC
Input EQ EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps
Frequency Resp: 10Hz ~ 80kHz
Operating Voltage 11v-16v
Input Sens (V) RCA
Input Sens (V) Hi

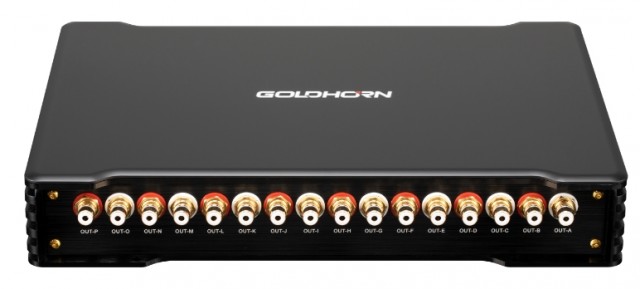

RCA Out Voltage 16 x 6V
RCA Out Specs THD+Noise 0.00018 S/N >125
Amp Outputs | THD+Noise 100dB N/A
Dimensions (mm) 304 x 231 x 50
Start-Stop ready Yes
EPS (Intelligent High-Level Input-Error Protection System) Yes
Finish Balck Anodized Aluminum
Auto Turn On via DC Offset or Signal Sensing Yes
Remote Turn on Output Yes
Clipping LED’s No
Built in Bluetooth aptX HD
Built In Wifi Yes
THD+Noise RCA 0.00018%
S/N ratio RCA >125dB
THD+Noise Amplifier N/A
S/N ratio Amplifier N/A
Fuse Rating 10A
Input impedance: No Impedance adaptor needed 6 Ohm High Level
Controller Standard Controller
Input Mixer Yes
Presets 8
Software Interface PC 32bit Windows 7 and up
All Pass filters at input and output EQs Both 1st Order and 2nd Order
Navigation Mode w/ Input Priority Yes
Automatic Mode Switching Mixer Yes
Password Available Yes
Analog Noise Gate Yes
Variable Power Off Delay Yes
Seven DAC rolloff choices for ESS 9038 Yes
