Vibe BDPRO4T-V0

Pro Audio compression horn driver

NOK890,00 inkl. mva.
På lager: 8 stk.
  • Produktinfo
  • Produktanmeldelser (0)

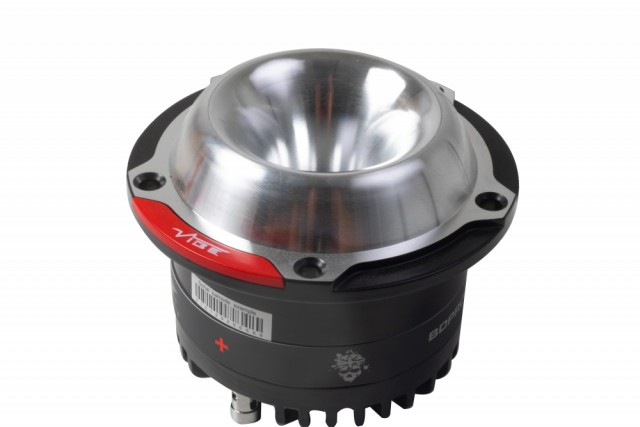

BDPRO4T-V0 - Compression Horn Driver

Introducing from VIBE the latest in our Pro Audio range the BDPRO4T-V0 our compression horn driver.

The horn driver differs from a traditional pro audio tweeter by using an inverted membrane at the back of the driver, this gives a longer loading into the throat of the horn. This design has been derived from the line array style horn drivers you would see at huge concerts and adapted to work in a car audio scenario.

The aluminum horn is strategically shaped to allow extreme wideband playback from 1.5khz to over 20khz and with a very high sensitivity of 107dB! This means that the compression driver is one of the loudest on the market.

We developed the driver to have a wonderful wide response concentrating and ensuring linear playback across its bandwidth and ensuring no loss of output or sensitivity at the high end

Be sure to pair this monster driver with any of our latest Blackdeath Pro mids for an incredible sound installation

BDPRO4T-V0 - Compression Horn Driver

Type  – Compression driver

Configuration  – 1-way

Speaker size  – 4.5” (115mm)

Frequency Response – 1.5khz – 20Khz

Sensitivity – 107dB

RMS Power  – 150 watts

Peak Power – 300 watts

Sensitivity  – 105dB

Impedance  – 8Ω

Mounting Depth  –  2.6” (67mm)

Mounting Diameter  – 3.5” (90mm)

• pro audio compression driver

• composite aluminium diaphragm

• cast aluminium housing

• wide frequency response

• high power y35 ferrite magnet

• spring loaded terminals

Frequency Response

Manuals

Click download below to view PDF versions of the manuals for this product

BDPRO4T-V0DOWNLOAD
