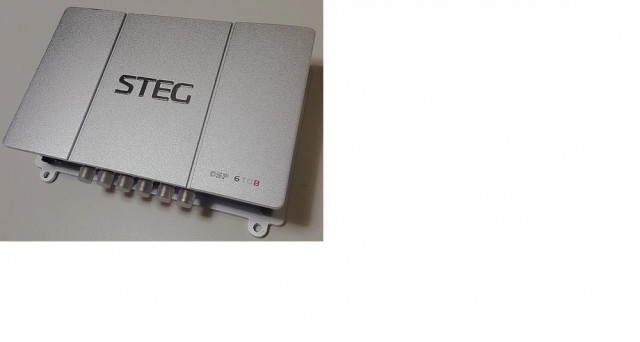

Steg DSP 6T08

Digital Signal Processor to 6 inputs and 8 outputs.

​

 32Bit 192Khz

• 6 input channels, 8 output channels

​

• Time-Delay with 0.02 msec steps, inclusion in cm, or msec.

​

• All settings are in real-time

​

• External control with display for presets and main settings

​

• USB connector for the PC via adjustments

​

• Input Low-Level or High-Level Auto-Sense (only in High-Level)

​

• Aux with Auto-Fading for stereo signal, speakerphone and navigation

​

• 5 presets

​

• Matrix Mixer to mix and match input / output channels at will

​

• SUM function (input) for active OEM systems / sources

​

​

• INPUT MODE: Low Level (LL) / High Level (HL)

• INPUT IMPEDANCE: > 15Kohm (LL) / 47ohm (HL)

• INPUT SENSITIVITY: 2Vrms ÷ 8Vrms (LL) / 2Vrms ÷ 15Vrms (HL)

• MAX OUTPUT SIGNAL: 8Vrms

• THD DISTORTION: <0.002% @ 1Vrms

• FREQUENCY RESPONSE: 10Hz ÷ 22KHz (within -0.3dB)

• CHANNEL SEPARATION: >88dB (@ 1KHz)

• SUPPLY VOLTAGE: 11V ÷ 15V

• CURRENT CONSUMPTION: 0.4A @ 12V

• GROUND ISOLATION vs CAR BODY: 1Kohm

• AUTOSENSE: two operative modes (yes, HL only)

• REMOTE OUTPUT: 50mA max.

• COMMUNICATION PERIPHERALS: WI-FI , Remote controller

• OPTICAL BOARD: S/PDIF

• SIZE: 185 x 120 x 43 mm (including fixing feet)
